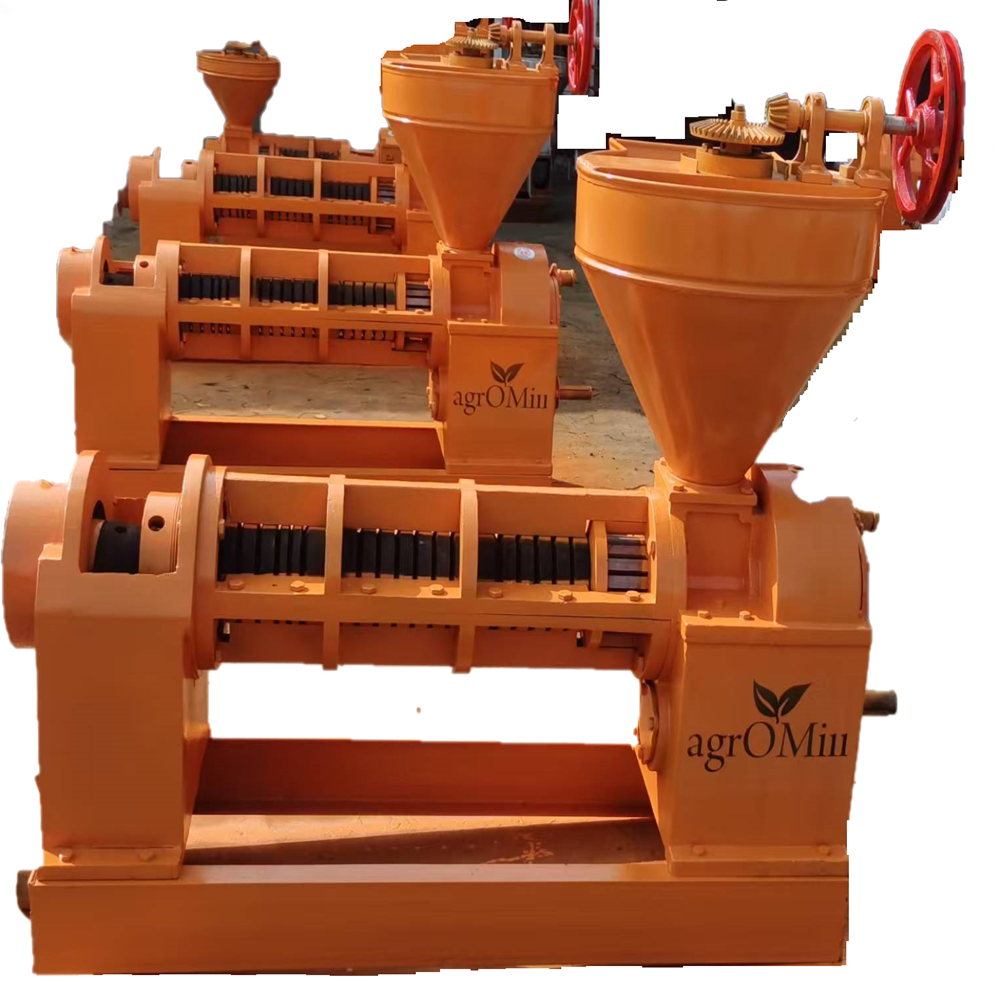

SCREW COLD PRESS OIL EXPELLER

Name: SCREW COLD PRESS OIL EXPELLER
Brand: AGROMILL MACHINERY
Price: 115000 INR
Availability: InStock

Price 99000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SCREW COLD PRESS OIL EXPELLER Specification

Frequency
50 Hz

Cooling System
Air Cooling

Lubricating System
Automatic Lubrication

Drive
Belt Drive

Power Rating
3 Phase

Motor Power
7.5 HP

Machine Type
Screw Type

Production Capacity
6-8 Tons/Day

Frame Type
Heavy Duty Steel Fabricated Frame

Noise Level
Low

Model No
SCPE-1000

Accuracy
High Extraction Accuracy

Voltage
380-415 V

Features
Low Power Consumption, Rugged Design, Easy Operation, Continuous Operation, High Oil Yield

Connectivity Options
Standard Electrical Connections

Operating Temperature
Ambient / <60C

Product Type
Oil Expeller Machine

Technology
Cold Press

Power Source
Electric

Operating Type
Automatic

Power
5-7.5 kW

Pressure
High Pressure

Surface Treatment
Polished / Painted

Dimension (L*W*H)
1650 x 610 x 735 mm

Weight (kg)
500 Kg

Color
Blue and Silver

Usage & Applications
Extraction of oil from seeds and nuts like groundnut, coconut, mustard, soybean, sesame, sunflower etc.

Installation
Floor Mounted

Material of Construction
Mild Steel / Stainless Steel

Packing Type
Wooden Box / As Per Requirement

Gearbox
Heavy Duty Reduction Gearbox

Oiling System
Integrated

Chamber Type
Single Chamber

Safety Features
Emergency Stop, Overload Protection

Feeding Mechanism
Automatic Hopper Feeder

Cleaning System
Easy Disassembly for Cleaning

Spare Parts Availability
Yes

Oil Residue Content in Cake
<8%

Belt Type
V-Belt

After Sales Service
Available

About SCREW COLD PRESS OIL EXPELLER

This oil press is a product developed to meet the needs of oil processing industry for small and medium-sized oil factories. This Oil extraction machine can process a wide range of oil seeds such as mustard seeds, rapeseed, sunflower seeds, soybean, peanut, sesame and other granular herbal oil plants, woody oil plants, wild plant oil plants and other granular oil seeds. This Oil expeller is the first choice ideal equipment for small and medium-sized oil factories and individual oil factories.

Exceptional Yield and Efficiency

Thanks to its high-pressure cold press technology and heavy-duty engineering, the SCREW COLD PRESS OIL EXPELLER achieves oil residue in cake below 8%, ensuring maximum yield. The advanced digital or PLC control system enhances extraction accuracy, while automatic lubrication and air cooling improve longevity and operational stability for continuous industrial use.

User-Focused Operation and Safety

Equipped with an automatic hopper feeder, emergency stop feature, and overload protection, the oil expeller prioritizes operator safety and ease of use. The intuitive floor-mounted design allows straightforward installation, and the easy disassembly system facilitates regular cleaning and maintenance, supporting hygienic operations with minimal downtime.

FAQ's of SCREW COLD PRESS OIL EXPELLER:

Q: How does the automatic hopper feeder work in the SCREW COLD PRESS OIL EXPELLER?

A: The automatic hopper feeder in the SCPE-1000 model streamlines the oil extraction process by continuously supplying seeds or nuts to the single-chamber pressing system. This mechanism ensures consistent operation, reduces manual intervention, and enhances productivity.

Q: What are the primary benefits of using a cold press technology for oil extraction?

A: Cold press technology preserves nutrients, flavor, and aroma of the extracted oil by keeping the operating temperature below 60C. This process produces higher quality oil compared to traditional hot-press methods and is especially advantageous for health-conscious and gourmet applications.

Q: When should routine maintenance or cleaning be performed on the expeller?

A: Regular cleaning is recommended after each production shift to maintain hygiene and machine efficiency. The expeller's easy disassembly system allows for swift, thorough cleaning and inspection, minimizing downtime and ensuring consistent quality output.

Q: Where is the SCREW COLD PRESS OIL EXPELLER typically installed?

A: This oil expeller is designed for floor-mounted installation and is ideal for use in commercial and industrial oil extraction facilities, seed processing plants, and oil mills that handle large volumes of seeds and nuts.

Q: What safety features are included in the SCPE-1000 model?

A: Safety is ensured through the inclusion of an emergency stop button and overload protection. These features swiftly halt operation in case of any abnormal load or emergency, protecting both the operator and equipment.

Q: What type of seeds and nuts can be processed with this machine?

A: The SCREW COLD PRESS OIL EXPELLER is suitable for a wide range of seeds and nuts, including groundnut, coconut, mustard, soybean, sesame, and sunflower, making it versatile for various oil production requirements.

Q: How does the after-sales service and spare parts support benefit users?

A: Comprehensive after-sales service and readily available spare parts ensure uninterrupted production and reduce machine downtime. This support helps maintain peak machine performance and extends the equipment's operational lifespan.
